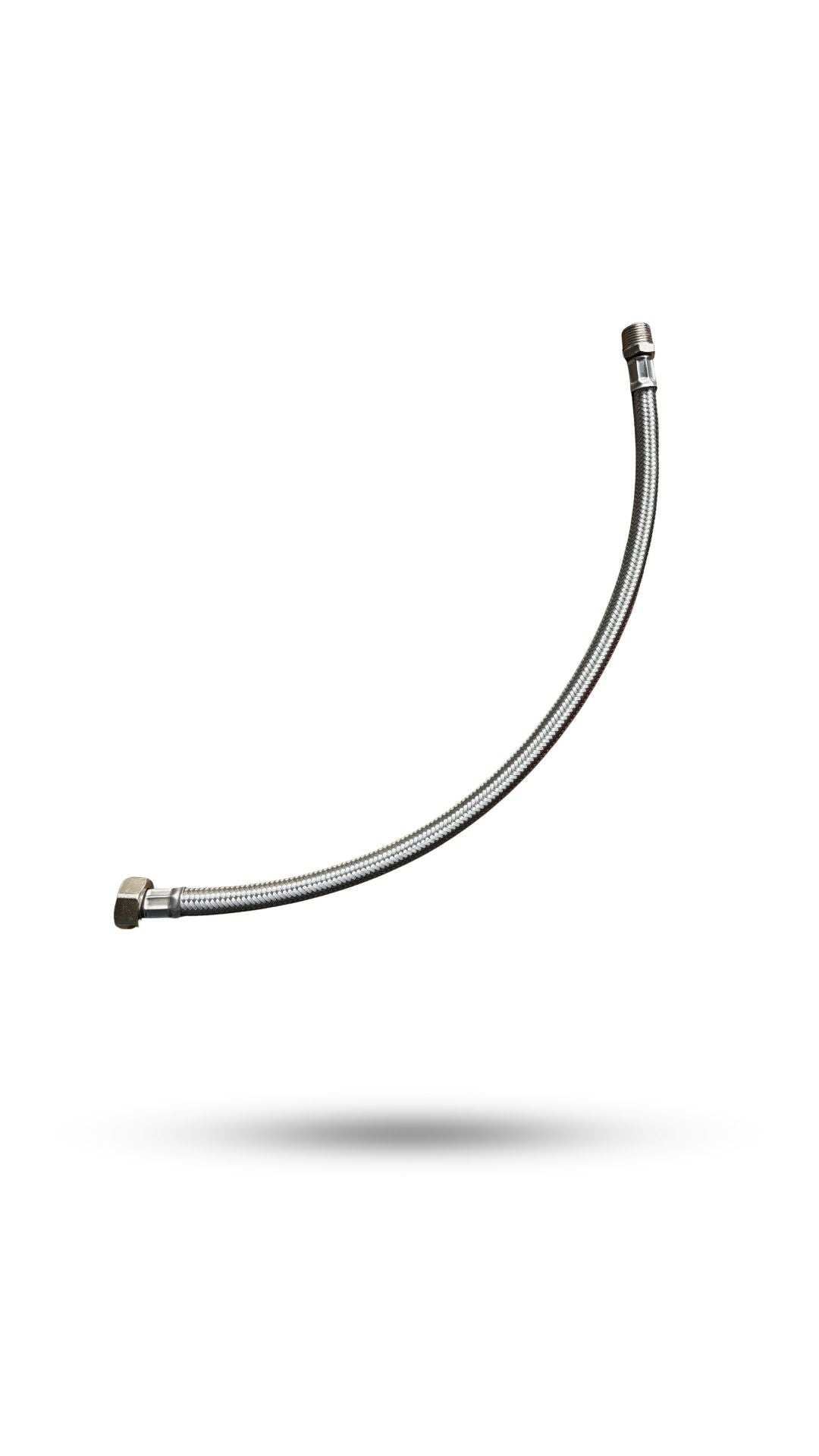

Hydraflex Non-Insulated 600mm long 1/2" Hose
Hydraflex Non-Insulated 600mm long 1/2" Hose
Couldn't load pickup availability
Non-Insulated 600mm long 1/2" Hose
1/2" Male BSP one end and 3/4" Female flat seal the other
Hydraflex's range of Convoluted Stainless Steel hose assemblies for building service applications meet the BSRIA BG4-2004 Flexible Hose standard and are manufactured with a single wire braid over a convoluted stainless steel core with either mild/carbon or stainless steel fittings secured by stainless weld collars.
For applications with lower working pressures un-braided hose is available along with a double braided version for higher working pressure applications. This range is available for installations that require a longer life expectancy or the operating parameters of the system exceed that of the standard rubber hoses.
| Bore | Fitting Size | Length | Minimum Length | Working Pressure (BAR) | Safety Factor (MIN) | Bend Radius (MM) |
| DN12 (1/2”) | 1/2” | - | 250mm | 70 | 04:01 | 45 |
Temperature Range: -200°C to +700°C
Standards: BSRIA BG4/2004 and ISO10380:2003
